Product details
- [DUAL-VOLTAGE] Designed for 12V and 24V vehicle electrical systems; the tester draws power from a vehicle battery through its clip leads.
- [4-PIN & 5-PIN] Select the 4-pin or 5-pin mode to test compatible automotive relays.
- [CLEAR INDICATORS] Green TRUE and red FALSE lights provide the result indicated by the tester.
- Five independent test positions for checking compatible relays consecutively.
The Automatic 9V–24V Automotive Relay Tester helps identify and test automotive relays for 12V and 24V applications. It automatically identifies relays across a 9V to 24V range and supports two common formats: 4-pin and 5-pin relays. Printed pin-layout diagrams on the face provide a clear visual reference when selecting the appropriate relay format. During testing, dedicated TRUE and FALSE indicator lights make the result easy to see. Operation is straightforward, using the ON/OFF control and TEST button. Designed as a dedicated tool for relay checks, it brings automatic identification and clear status indications to automotive testing for 12V and 24V systems. Use it to check compatible 4-pin or 5-pin relays and quickly view the indicated test result. Its supported voltage range is 9V to 24V, while its stated testing applications are 12V and 24V.
More from this category
- 8X/15X/23X Telescopic Magnifier w/2 LED - Precision Work, Reading, Watchmaker
- 1x High Magnification LED Magnifying Glass 8x,15x,23x,Dual Head Precision Design
- Offset Oxygen Sensor Socket Wrench, 7/8 in (22 mm) Slotted O2 Sensor Tool, 3/8 in Drive
- Lightweight, Clear, Strong & Anti-Glare Magnifying Glass for Coin Collection
Specifications

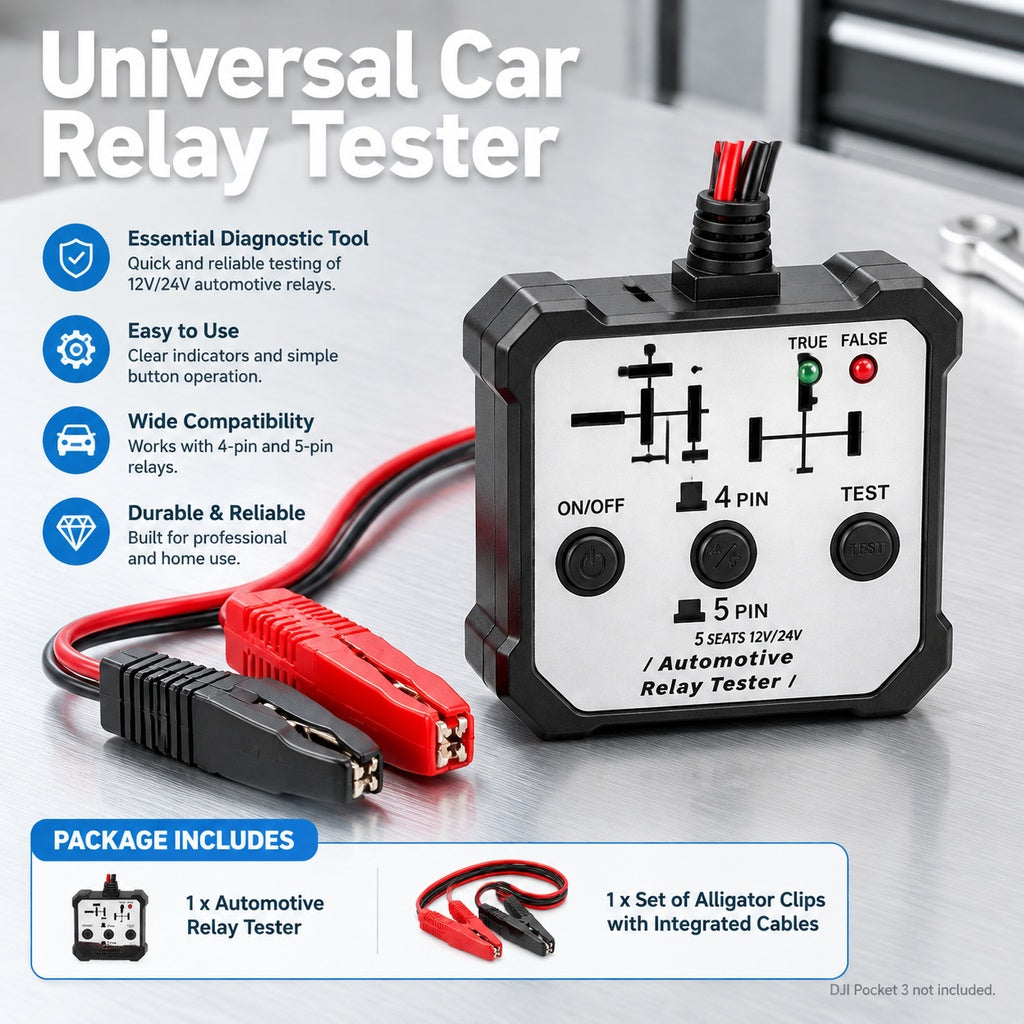

| Product type | A battery-powered automotive relay tester with red and black alligator-clip leads, 4-pin/5-pin selection, and TRUE/FALSE indicator lights. |
|---|---|
| Intended use | Tests compatible automotive relays and indicates a pass/fail result; it is not a general-purpose vehicle diagnostic scanner. |
| Compatibility | Automotive relays in supported 4-pin and 5-pin configurations, using a 12V or 24V vehicle battery for power. |
| Measured size | Front labels include ON/OFF, 4 PIN, 5 PIN, TRUE, FALSE, and 12V/24V wording. |
| Connectors | Front labels include ON/OFF, 4 PIN, 5 PIN, TRUE, FALSE, and 12V/24V wording. |
What batteries or power does it require?
The tester draws power from a vehicle battery through its red and black clip leads; no extra power adapter is required
