Two Devices on One OBD2 Port: What a Splitter Can and Cannot Do

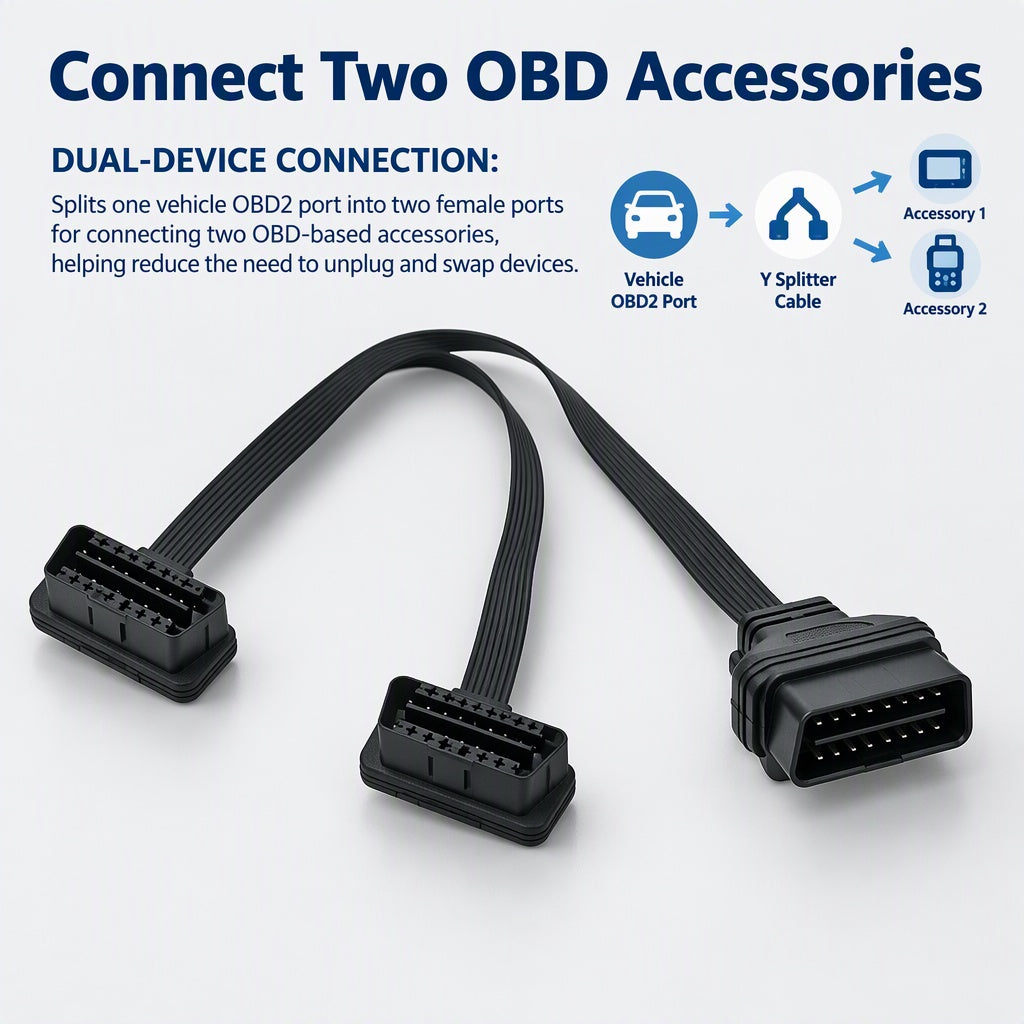

OBD2 Y splitter cable with one male plug and two female ports

Last updated: 2026-10-21

An OBD2 port is a shared data bus, not a socket that belongs to one device. A Y splitter adds a second physical connection point, and in most cases both accessories will work at once. What limits you is not the plug count — it is current draw, voltage drop, and whether one of the devices tries to talk rather than just listen.

This guide covers what a splitter actually changes, the three real limits, and the cases where an adapter is the wrong answer entirely.

1. The port is a bus, not a single-device socket

OBD2 was designed so that more than one tool can sit on the same diagnostics line. That is why a splitter exists as a product at all, and why the listed splitter describes its job as “two physical connection points from one standard vehicle OBD2 port, avoiding repeated unplugging” rather than adding capability.

The plug itself is standardised: a 16-pin connector, with battery positive on pin 16 and grounds on pins 4 and 5. Everything else on the connector is signal and manufacturer-specific pins, which is why an adapter can change the plug shape but not the language spoken on the wire.

2. What the splitter physically does

Property Stated value Why it matters
Connectors One male OBD2 plug, two female OBD2 ports, Y configuration It splits one port into two usable sockets
Cable length 15 cm flat ribbon Short by design — it hangs at the port, it does not reach across the dash
Port angle 90° angled female connectors Keeps plugs from protruding into the driver's knee area
Voltage range 8–16V input and output Covers a 12V vehicle system including charging voltage; it is not a converter
Working temperature Stated continuous tolerance up to 105°C Relevant if the port sits near a footwell heater outlet
Vehicle type 12V gasoline vehicles with a standard 16-pin OBD2 interface It does not create an OBD2 port on a vehicle that never had one
OBD2 splitter male plug branching into two female ports C100 OBD2 head-up display with a fold-up reflective screen OBD2 head-up display showing speed, RPM and coolant temperature

3. The three real limits

  1. Current draw. Two accessories draw from the same pin 16 feed. Two small readers are negligible; a HUD with a bright display plus a second powered device is a bigger load than one. If a device browns out or restarts when the second one is plugged in, that is the symptom.
  2. Voltage drop across a short cable. The splitter is 15 cm of thin ribbon. It is fine for a reader, but the longer the total run and the higher the current, the more the far device sees a lower voltage than the battery actually has — which shows up as inaccurate voltage readings rather than an obvious failure.
  3. Devices that transmit, not just listen. Most consumer accessories only listen to broadcast data. Two devices that both actively request data can interfere with each other, and that is not something a splitter can arbitrate. If one tool misbehaves only when the other is connected, this is the likely cause — unplug one and re-test.

4. Always-on versus ignition-switched ports

On some vehicles pin 16 stays live with the key off; on others it drops with the ignition. This matters more with a splitter, because a second device is a second thing left connected.

The listed HUDs both describe ignition-linked behaviour: the C100 unit is stated to power on and shut down in sync with the ignition, and the dashboard-style unit adds overspeed, high-RPM, high-coolant and low-battery alerts. That behaviour depends on the vehicle supplying the port the way the device expects — it is not something the splitter controls. If your port stays live, verify the device actually sleeps rather than staying lit in a parked car.

5. When an adapter is the right answer instead

A splitter assumes your vehicle already has a 16-pin OBD2 port. Older vehicles, and some non-US market models, use a different diagnostic connector — and there the answer is an adapter cable, not a splitter.

The Nissan-style adapter listed here is the example: it converts a Nissan diagnostic port to a 16-pin OBD-II scanner connector over a 40 cm cable. It is an adapter, not a scanner — the listing states plainly that it does not read codes, and that results depend on the vehicle and the tool attached.

Adapters change pins, not protocol. If the vehicle does not speak a protocol your scanner understands, a correct adapter still will not make it readable.

6. The parts listed here

Prices are USD at the time of writing and change — check the product page for the current figure.

Part What it does Stated fitment Listing
16-pin OBD2 Y splitter One male plug to two female ports, 15 cm flat ribbon, 90° ports 12V gasoline vehicles, standard 16-pin port; 8–16V OBD2 Y Splitter Cable — $49.73
Nissan diagnostic adapter Vehicle-side Nissan diagnostic port to 16-pin scanner plug, 40 cm Compatible Nissan diagnostic port; adapter only, does not read codes Nissan to OBDII Adapter Cable — $31.48
C100 head-up display Speed readout with fold-up reflector, ambient-light dimming, ignition-linked power Vehicles with a compatible OBD2 port and supported protocols C100 OBD2 Head-Up Display — $58.67
Dashboard-style HUD Speed, RPM, coolant temperature and battery voltage where supported, plus alerts Gasoline vehicles with a standard 16-pin OBD2 port OBD2 Head-Up Display with RPM — $58.97

What the listings do not state

  • The Nissan adapter's pin count is stated inconsistently. The title and fitment note say 14-pin, while the short description describes a 3-pin vehicle connector. Those are different plugs. Photograph your vehicle's diagnostic socket and compare it to the product photos before ordering — do not rely on the pin count alone.
  • HUD readings vary by vehicle. Both HUD listings say the available data depends on what the car broadcasts. Speed is the reliable figure; RPM, coolant temperature and battery voltage may not appear on every vehicle even though the device supports them.
  • The splitter does not increase what a scanner can read. It provides two sockets; each attached device is still limited by the vehicle's protocols.
  • No fuse or protection is described on the splitter. The listing states a voltage range, not a rating for total current through the splitter. Keep the combined draw modest.
  • Neither HUD includes a second mounting option beyond its own bracket or mat. The C100 ships as one unit; the dashboard-style unit includes the OBD2 cable, reflective film, non-slip mat and manual.

7. What this will not fix

  • Give a pre-OBD2 vehicle a working diagnostics port. An adapter maps pins; it cannot add a protocol the car never had.
  • Let two transmitting tools share the bus cleanly. Listening devices coexist; two active requesters may not.
  • Fix a dead port. If pin 16 has no voltage, the splitter has nothing to distribute — check the fuse that feeds the diagnostic socket first.
  • Read codes on its own. The splitter and the adapter are passive parts. Only the HUDs and your scanner produce readings.

8. Before you order

  1. Confirm the port, not the model year. A 16-pin OBD2 socket is what the splitter needs; if your socket is not 16-pin, you need an adapter first.
  2. List what you intend to leave plugged in. A HUD that stays connected plus a scanner is the normal case; two bright displays on one port is the case that browns out.
  3. Test with one device first. Add the second only after the first behaves, so an interference problem is obvious rather than guessed at.
